Reverse Engineering Harvester with Ghidra and Codex - Part 3: File Formats

Series: Reverse Engineering Harvester

This review is part of the Reverse Engineering Harvester series, where I document my journey of reverse engineering the 1996 DOS game Harvester to re-implement its game engine in ScummVM.

• ← Reverse Engineering Harvester with Ghidra and Codex - Part 2
• Reverse Engineering Harvester with Ghidra and Codex - Part 3: File Formats

Article 3 of 3 in this series.

File Formats

This document tracks file-format facts that are confirmed by the current Harvester reverse-engineering work. It is intentionally conservative: if a field or behavior is not supported by code or verified runtime notes, it is left out.

The sections below combine three sources of evidence: the current ScummVM Harvester engine code, named native functions and data types in Ghidra, and spot-checks against extracted sample files from the Harvester CD image. Unknown or only partially understood fields stay marked as such.

DAT (XFILE archive payload)

Harvester’s .DAT files act as payload containers for the game’s numbered XFILE resource sets. The important wrinkle is that the .DAT file is not the whole format by itself: the loader depends on a sidecar INDEX.00N file for the directory. In other words, the .DAT holds the bytes, while the INDEX.00N records tell the engine where each member starts, how large it is, and whether it must be unpacked after reading.

At confirmed cold start, the original game mounts these pairs in this order:

Set	Index file	Data file	Notes
1	INDEX.001	HARVEST.DAT	First archive-backed set mounted during startup. Confirmed startup art and UI assets are loaded through this set.
2	INDEX.002	SOUND.DAT	Second numbered set mounted during startup.
3	INDEX.003	HARVEST2.DAT	Third numbered set mounted during startup.

Summary

Property	Value
Format role	Archive payload file used by the XFILE resource layer
Companion metadata	Required sidecar INDEX.00N directory file
Archive-wide header in .DAT	No confirmed archive-wide header or in-file directory has been required by the current loader
Addressing model	Members are looked up by path in INDEX.00N, then read from absolute offsets in the .DAT
Path syntax in game code	Archive-backed lookups use <set-number>:\path\to\file.ext
Endianness	Mixed in the sidecar index: signature is checked as big-endian XFLE; numeric fields are little-endian 32-bit values
Compression	Optional per-entry packing; unpacked entries are read directly, packed entries are expanded after read

.DAT payload layout

Offset	Size	Description
0x00	variable	Raw member data addressed by the sidecar index. The current loader treats the file as a byte reservoir and does not require a confirmed global header before opening entries.

This is sparse compared with many archive formats. The format’s structure is directory-driven rather than self-describing. All meaningful per-file metadata currently comes from the matching INDEX.00N file.

INDEX.00N directory record layout

Each confirmed sidecar index is read as a flat array of 0x94-byte records:

Offset	Size	Type	Name	Description
0x00	0x04	ASCII	signature	XFLE magic. The loader rejects records whose first four bytes do not match this tag.
0x04	0x80	char[128]	path	NUL-terminated resource path string. This is the logical member name used for later lookups.
0x84	0x04	uint32le	archive_offset	Absolute offset of the member data inside the companion .DAT file.
0x88	0x04	uint32le	stored_size	Number of bytes stored in the .DAT for this member.
0x8c	0x04	uint32le	packed_flag	0 means the member is stored verbatim. Any nonzero value takes the packed-entry decode path. The current loader does not distinguish between different nonzero flag values.
0x90	0x04	uint32le	unpacked_size	Expected output size after decode for packed entries.

Packed entry stream

When packed_flag != 0, the loader reads stored_size bytes from the .DAT and expands them into an unpacked_size output buffer using a simple control-byte stream:

Control byte range	Meaning
0x00 to 0x80	Copy the next control bytes literally into the output stream.
0x81 to 0xff	Read one byte and repeat it control - 0x80 times.

The decode loop stops once either the compressed input is exhausted or the output buffer reaches unpacked_size. Entries that fail to produce exactly unpacked_size bytes are treated as invalid.

Path handling notes

Behavior	Detail
Separators	Resource paths are normalized from DOS-style backslashes to forward slashes during lookup.
Prefix stripping	Leading ./, leading /, and <digit>:/ prefixes are stripped during normalization.
Case handling	Archive member lookups are case-insensitive in the current implementation.
Loose files vs archive paths	Bare relative paths are handled separately by the direct-file path builder; <digit>:\... paths select an archive set instead.

Practical interpretation

For extraction or tooling work, the current evidence supports treating Harvester’s .DAT archives as a two-file format:

1. Read the matching INDEX.00N file as a sequence of 0x94-byte XFLE records.
2. Use each record’s archive_offset and stored_size to slice bytes from the companion .DAT.
3. If packed_flag is zero, the slice is the final file.
4. If packed_flag is nonzero, expand the slice with the literal/repeat decoder above until unpacked_size bytes are produced.

That model is enough to explain the startup resource mounts already confirmed in the reverse-engineering notes, and it matches the current ScummVM-side archive loader.

RCS (Quick-tip text lists)

The only confirmed .RCS use so far is ADJHEAD.RCS, the quick-tips file shown by the startup/options overlay. Both native run_quick_tips_screen and the ScummVM Flow::loadQuickTips path treat it as plain text rather than as a binary container.

Summary

Property	Value
Format role	Plaintext list of quick-tip strings
Confirmed consumer	Startup quick-tips overlay and options-menu quick-tips screen
Encoding	Plain ASCII text in the sampled file
Header	None
Delimiters	CR/LF line endings in the sampled file; loaders split on \n and ignore \r

File layout

Offset / unit	Size	Description
0x00..EOF	variable	Sequence of text lines. Each non-empty trimmed line becomes one quick-tip string.

Notes

• The sampled ADJHEAD.RCS begins directly with readable text: Double click the left mouse button....
• The native quick-tips path advances through the file with read_line_from_file_stream, wraps back to the start on EOF, and chooses a random starting point the first time it runs.
• This is a good example of Harvester’s resource pipeline staying pragmatic: not every gameplay-facing asset is wrapped in a custom binary format.

DIALOG.RSP (Dialogue response and keyword text)

DIALOG.RSP is a plaintext line table used by the dialogue UI. It does not appear to contain ids, offsets, or a binary header; the engine indexes it by zero-based line number and then uses the line text directly.

Summary

Property	Value
Format role	Plaintext dialogue response / keyword string table
Confirmed consumers	load_dialogue_response_line, response menu, keyword menu
Encoding	Plain ASCII text in the sampled file
Header	None
Addressing model	Zero-based line index

File layout

Unit	Description
Line n	One response, keyword label, or menu text string
/ within a line	In response/keyword UI contexts, splits one source line into multiple visible menu items

Notes

• The native loader reads a requested zero-based line, strips the trailing CR/LF, and returns the shared text buffer directly.
• run_dialogue_response_menu and run_dialogue_keyword_menu split visible options on /; there is no confirmed hidden topic-id layer behind those labels.
• load_dialogue_index also pulls zero-based line 13 from DIALOG.RSP to seed the default keyword topic; in the sampled file that line is BYE (one-based line 14).
• DIALOG.RSP shows Harvester leaning on designer-editable text tables even inside a fairly custom dialogue stack.

DIALOGUE.IDX (Subtitle index)

DIALOGUE.IDX is an XOR-obfuscated text file that maps voice sample ids to subtitle strings. The native load_dialogue_index path and the ScummVM Text::loadDialogueIndex reimplementation both decode it with XOR 0xAA while leaving CR/LF intact.

Summary

Property	Value
Format role	Voice-id to subtitle-text index
Encoding on disk	ASCII text obfuscated with XOR 0xAA on every byte except CR/LF
Header	None
Confirmed delimiters	NUL, LF, CR, and form-feed (0x0c)
Key native type	DialogueIndexEntry { wav_id, text_offset, text_length }

Decoded stream layout

Sequence element	Description
ASCII decimal token	wav_id for one spoken line
Delimiter run	One or more of NUL, LF, CR, FF
ASCII text token	Subtitle text for that voice id
Delimiter run	Ends the subtitle record and starts the next id

Derived index entry

Field	Meaning
wav_id	Positive decimal voice/sample id
text_offset	Byte offset of the decoded subtitle text inside the decoded blob
text_length	Subtitle length, clamped to 0x19a bytes by the native loader

Notes

• After XOR decode, the sampled file starts with a simple alternating pattern: 1, "junk init", 7, "Yes?", 11, "I need some help...", and so on.
• The native loader builds a 3000-entry in-memory table and keeps the decoded text blob around so play_dialogue_line can seek back into it cheaply.
• Architecturally, this splits dialogue cleanly in two: DIALOGUE.IDX carries spoken-line subtitles keyed by numeric wav ids, while DIALOG.RSP carries menu-facing response text.

python3 -c 'import sys,pathlib,signal; signal.signal(signal.SIGPIPE, signal.SIG_DFL); d=pathlib.Path(sys.argv[1]).read_bytes(); sys.stdout.buffer.write(bytes(b if b in (10,13) else b ^ 0xAA for b in d))' DIALOGUE.IDX | head -n 10
1
"junk init"
7
"Yes?"
11
"I need some help... Mister...?"
15
"Postmaster Boyle.  What can I do you for today?"
25
"Sorry, youngster, we're out of applications right now."

SCR (Town/world startup script)

HARVEST.SCR is the central world-definition and startup-script file. It is XOR-obfuscated text, not bytecode. The native load_xor_obfuscated_town_script path and the ScummVM Script::decode path both XOR each non-CR/LF byte with 0xAA, then parse whitespace-separated records with quoted strings preserved.

Summary

Property	Value
Format role	World database, startup configuration script, and command graph
Encoding on disk	ASCII text obfuscated with XOR 0xAA on every byte except CR/LF
Header	None
Comment syntax	Lines whose first non-space character is { are skipped
Tokenization	Whitespace-delimited tokens with quoted strings kept intact

Confirmed record forms

Tag	Leading numeric fields	Fields after the tag
ENTRANCE	x y z	direction roomName entranceName
MAP_ENTRANCE	mapX mapY initialPanelIndex	entryName
MAP_LOCATION	minX minY maxX maxY panelIndex labelX labelY	labelText destinationEntranceName
ROOM	minZ maxZ maxZScreenY minZScreenY fullScaleZ maxZScalePercent	roomName musicPath reservedString38 reservedString3c reservedString40 palettePath dimmable onEnterCommand onExitCommand
OBJECT	initialX initialY boundsX2 boundsY2 initialZ zExtent	initialOwnerOrRoom objectName spritePath altSpritePath reservedString40 inventoryTextKey reservedXFlag identTextKey operatable visible actionTag interactionLabel
ANIM	x y z frameDelay	roomName resourcePath animName active visible looping backward pingPong remove
NPC	x y z frameDelay	roomName modelPath npcName monsterfyTargetName active visible onDeathActionTag audioPath entityInitArg
MONSTER	x y z ...	Sample data and native analysis confirm sound-trigger timing columns for attack, hit, footstep, and death. The intermediate string columns at offsets 0x38, 0x3c, 0x44, and 0x48 remain reserved in current data and have no recovered read-side consumers.
REGION	left top right bottom minZ maxZ	regionName direction roomName actionTag startEnabled cursorEnabled
FLAG	none	name value
COMMAND	none	triggerTag opcodeName arg1 arg2 arg3 [arg4]
TEXT	none	key boxName value
HEAD	none	headId portraitPath
USEITEM	none	itemName ownerOrRoom targetName actionTag

Notes

• The sampled file starts with readable structural records immediately after XOR decode, for example ENTRANCE, OBJECT, and later ROOM, TEXT, HEAD, and COMMAND.
• Paths embedded in script records are not uniform: archive-backed resources use 1:\..., 2:\..., 3:\..., while some direct-file assets are bare relative paths such as dialogue.idx.
• GOFLIC and GODEATHFLIC are especially revealing command names. In the sampled script, those opcodes point to .FST paths, which suggests the script vocabulary preserved older naming while the shipping runtime movie path used FST files.
• HARVEST.SCR shows that Harvester’s resource architecture is data-driven at the top level: rooms, objects, dialogue portraits, commands, music, palettes, and cutscene triggers all converge here.

python3 -c 'import sys,pathlib,signal; signal.signal(signal.SIGPIPE, signal.SIG_DFL); d=pathlib.Path(sys.argv[1]).read_bytes(); sys.stdout.buffer.write(bytes(b if b in (10,13) else b ^ 0xAA for b in d))' HARVEST.SCR | head -n 10
{// HARVESTER (c) 1995-96 Scripting Language
{// Town
        0   0   0   ENTRANCE "BACK" "TOWN_2_LODGE" "SERGEANT_2_LODGE"
        0   0   0   ENTRANCE "FRONT" "" "SAVE_GAME"
        492 67  554 96   0  1 OBJECT "INVENTORY" "INV_EXIT" "" "" "" "" "" "X" "F" "T" "" "Inventory"
        299 0   0   0    2  1 OBJECT "NULL_ID"          "EXIT_BM"  "1:\GRAPHIC\OTHER\EXITSIGN.BM" "" "" "" ""  "" "F" "T" "" "exit"
        299 0   375 61   0  1 OBJECT "NULL_ID"          "EXIT_HS"  ""                             "" "" "" "X" "" "T" "T" "" "exit"

{// inventory health indicator
     72 314 0   0  -12  1 OBJECT "INVENTORY" "INV_STAT1" "1:\graphic\other\head-a1.bm" "" "" "INV_STAT_ST" "" "" "F" "F" "" "Health_Indicator"

BM (Static indexed bitmap)

.BM is Harvester’s simplest custom image format: a small fixed header followed by raw 8-bit indexed pixels. It is used for UI panels, portraits, inventory art, help screens, and other non-animated images.

Summary

Property	Value
Format role	Raw 8-bit indexed bitmap
Confirmed consumers	spawn_bitmap_entity_from_resource, reload_bitmap_entity_pixels_from_resource, menu/help/dialogue overlay loaders
Compression	None confirmed
Pixel format	1 byte per pixel, palette-indexed

File layout

Offset	Size	Type	Description
0x00	0x04	uint32le	width
0x04	0x04	uint32le	height
0x08	0x04	uint32le	Unused/reserved in current analysis. Both native and ScummVM loaders ignore it; sampled MOUSHELP.BM stores zero here.
0x0c	width * height	bytes	Raw indexed pixel payload, row-major

Notes

• The native binary reuses the same RawBitmap/BitmapBuffer shape in memory: { width, height, pixels }.
• The format itself does not encode transparency, but many callers render it with palette index 0 treated as transparent.
• Compared with many later adventure engines, this is an aggressively direct format: no chunking, no palette sidecar inside the file, and no per-row metadata.

PAL (Standalone palette)

Harvester’s .PAL files are raw palette payloads with no header. The native palette upload helpers and ScummVM Art::loadPalette both treat them as 256 RGB triplets.

Summary

Property	Value
Format role	Standalone 256-color palette resource
Confirmed consumers	Room setup, menus, help screens, wait overlay, town map
Header	None
Payload size	768 bytes (256 * 3)

File layout

Offset / range	Size	Description
0x000..0x2ff	768 bytes	256 consecutive (R, G, B) triplets stored as 8-bit channel values

Notes

• Native upload_palette_to_vga forces palette index 0 to black at upload time, applies brightness scaling, and then shifts the stored 8-bit channels down to VGA’s 0..63 DAC range.
• The sampled INVHELP.PAL contains full-range byte values up to 0xff, which matches the native analysis that .PAL is stored as 8-bit RGB, not pre-divided 6-bit VGA values.
• This makes .PAL a nice contrast with FST’s embedded movie palettes, which are stored in 6-bit VGA form inside each frame payload.

TRY IT OUT!

python3 -m pip install pillow
python3 -c 'from PIL import Image; import sys,struct; d=open(sys.argv[1],"rb").read(); w,h=struct.unpack_from("<II",d,0); i=Image.frombytes("P",(w,h),d[12:12+w*h]); p=open(sys.argv[2],"rb").read()[:768] if len(sys.argv)>2 else bytes(c for n in range(256) for c in (n,n,n)); i.putpalette(p); i.show()' /path/to/*.BM [/path/to/*.PAL]

python3 -c '...' GRAPHIC/OTHER/INVHELP.BM

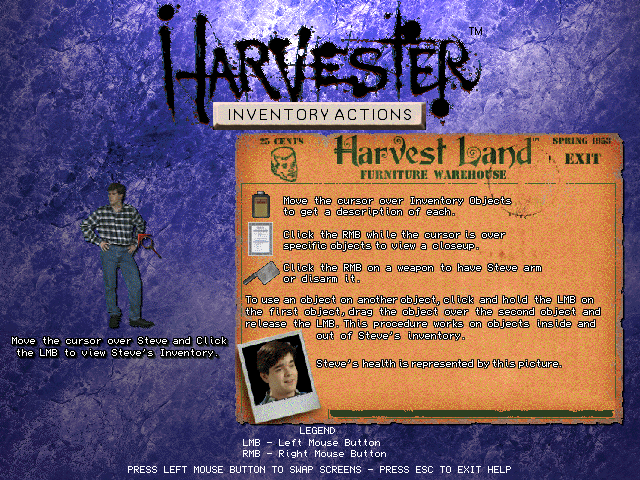

python3 -c '...' GRAPHIC/OTHER/INVHELP.BM GRAPHIC/PAL/INVHELP.PAL

CFT (Bitmap font)

.CFT packages a bitmap font as a fixed metrics header plus one raw 8-bit atlas image. The native load_font_resource and the ScummVM Text::loadFont / HarvesterCftFont code agree on the basic structure.

Summary

Property	Value
Format role	Bitmap font resource with metrics tables and atlas
Glyph count	256 slots
Rendering model	Each glyph is a horizontal slice out of one shared atlas bitmap
Confirmed consumers	Menu text, room labels, dialogue, save/load UI, text-entry widgets

File layout

Offset	Size	Type	Description
0x000	0x40	char[64]	NUL-terminated font name (HARVFONT in the sampled file)
0x040	0x02	uint16le	Font height
0x042	0x200	uint16le[256]	Glyph start-X table
0x242	0x200	uint16le[256]	Glyph width table
0x442	0x02	uint16le	Space width
0x444	0x04	unknown	Unused/reserved in current analysis
0x448	0x04	uint32le	Atlas width
0x44c	0x04	uint32le	Atlas height
0x450	0x04	unknown	Unused/reserved in current analysis; sampled HARVFONT.CFT stores zero here
0x454	atlasWidth * atlasHeight	bytes	Raw atlas pixels, row-major, 8-bit indexed

Notes

• The renderer derives each glyph by slicing width pixels from x inside the shared atlas. There is no per-glyph bitmap chunking.
• drawHeight is effectively atlasHeight - 1 in the current font renderer, which matches the native behavior of treating the last row as non-drawing padding.
• The font renderer treats both ' ' and '_' as space-width characters. That ties neatly back to the script/text resources, where underscore-heavy identifiers and UI labels coexist with visible text.

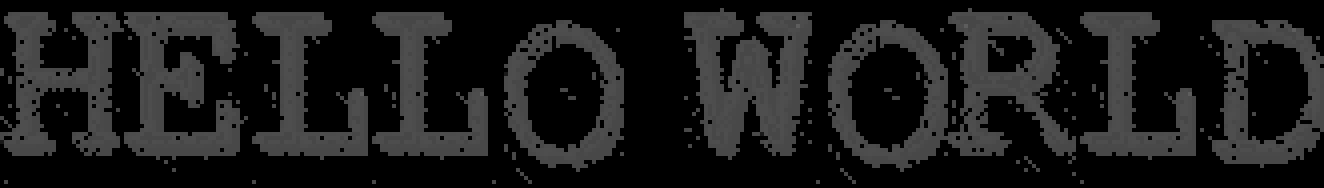

TRY IT OUT!

python3 -c 'from PIL import Image; import sys,struct; d=open(sys.argv[1],"rb").read(); aw,ah=struct.unpack_from("<II",d,0x448); h=max(1,min(struct.unpack_from("<H",d,0x40)[0] or ah-1,ah-1)); sw=struct.unpack_from("<H",d,0x442)[0] or 1; s=[struct.unpack_from("<H",d,0x42+i*2)[0] for i in range(256)]; w=[struct.unpack_from("<H",d,0x242+i*2)[0] for i in range(256)]; a=Image.frombytes("L",(aw,ah),d[0x454:0x454+aw*ah]); t=sys.argv[2]; W=sum(sw if ord(c)>255 or c in " _" or w[ord(c)]<=0 else w[ord(c)] for c in t); i=Image.new("L",(max(1,W),h),0); x=0; exec("for c in t:\n o=ord(c)\n gw=sw if o>255 or c in \" _\" or w[o]<=0 or s[o]>=aw else w[o]\n if gw and o<=255 and c not in \" _\" and w[o]>0 and s[o]<aw: i.paste(255,(x,0,x+gw,h),a.crop((s[o],0,s[o]+gw,h)))\n x+=gw"); i.resize((max(1,i.width*4),max(1,i.height*4)),Image.NEAREST).show()' "GRAPHIC/FONT/HARVFNT2.CFT" "Hello World"

ABM (Animated bitmap / sprite strip)

.ABM is Harvester’s main custom sprite/animation format. It backs cursor art, actor sprites, room animations, combat entities, and wait-overlay animation frames.

Summary

Property	Value
Format role	Multi-frame indexed animation resource
Confirmed consumers	attach_abm_resource_to_entity, spawn_abm_entity_from_resource, startup art loaders, room animation runtime
Pixel format	8-bit indexed pixels
Compression	Optional per-frame RLE-like stream

File header

Offset	Size	Type	Description
0x00	0x04	uint32le	frame_count
0x04	0x04	uint32le	Native runtime uses this value to size the temporary decoded-frame buffer before adding 0x10 bytes of slack. The current ScummVM loader does not otherwise interpret it. Sampled BLOOD.ABM stores 0x888 here.
0x08	variable	sequence	First frame record begins here

Per-frame record

Offset within frame	Size	Type	Description
0x00	0x04	int32le	x_offset
0x04	0x04	int32le	y_offset
0x08	0x04	uint32le	width
0x0c	0x04	uint32le	height
0x10	0x01	byte	compressed_flag
0x11	0x04	uint32le	encoded_size
0x15	encoded_size	bytes	Encoded or raw pixel payload for this frame

Compressed frame stream

Control byte form	Meaning
0x00..0x7f	Copy the next control bytes literally
0x80..0xff	Read one byte and repeat it control & 0x7f times

Notes

• Each frame decodes to exactly width * height bytes of indexed pixels.
• The sampled BLOOD.ABM starts with 5 frames; its first frame is offset (4, 0), size 38 x 50, and marked compressed.

Try it out!

python3 -c $'from PIL import Image\nimport sys,struct,tempfile,pathlib,webbrowser\n\ndef dec(s,n):\n i=0; o=bytearray()\n while i<len(s) and len(o)<n:\n  k=s[i]; i+=1\n  if k<128:\n   c=min(k,len(s)-i,n-len(o)); o+=s[i:i+c]; i+=c\n  elif i<len(s):\n   o.extend([s[i]]*min(k&127,n-len(o))); i+=1\n return bytes(o)\n\nd=open(sys.argv[1],"rb").read()\npal=open(sys.argv[2],"rb").read()[:768] if len(sys.argv)>2 else bytes(c for n in range(256) for c in (n,n,n))\nfc=struct.unpack_from("<I",d,0)[0]; off=8; F=[]; minx=miny=10**9; maxx=maxy=-10**9\nfor _ in range(fc):\n x,y,w,h=struct.unpack_from("<iiii",d,off); c=d[off+16]; n=struct.unpack_from("<I",d,off+17)[0]; s=d[off+25:off+25+n]; off+=25+n; p=s[:w*h] if not c else dec(s,w*h); F.append((x,y,w,h,p)); minx=min(minx,x); miny=min(miny,y); maxx=max(maxx,x+w); maxy=max(maxy,y+h)\nminx=min(0,minx); miny=min(0,miny); W=maxx-minx; H=maxy-miny; G=[]\nfor x,y,w,h,p in F:\n src=Image.frombytes("P",(w,h),p); src.putpalette(pal); m=src.point(lambda v:0 if v==0 else 255,"L"); fr=Image.new("RGBA",(W,H),(0,0,0,0)); fr.paste(src.convert("RGBA"),(x-minx,y-miny),m); G.append(fr)\nf=tempfile.NamedTemporaryFile(suffix=".gif",delete=False).name; G[0].save(f,save_all=True,append_images=G[1:],duration=100,loop=0,disposal=2,transparency=0); webbrowser.open(pathlib.Path(f).as_uri())' /path/to/.ABM [/path/to/.PAL]

For example:
python3 -c $'...' "GRAPHIC/ROOMANIM/CLOAK.ABM"

python3 -c $'...' "GRAPHIC/ROOMANIM/CLOAK.ABM" "GRAPHIC/PAL/INVHELP.PAL"

CMP (FCMP-compressed audio)

.CMP is Harvester’s custom compressed audio wrapper. The sampled files begin with FCMP, and the native load_sound_sample / load_dialogue_voice_sample code plus the ScummVM decodeHarvesterFcmp path all treat that payload as IMA-ADPCM-like compressed audio.

Summary

Property	Value
Format role	Compressed audio for music, dialogue voice, and sound effects
Confirmed magic	FCMP
Confirmed codec	IMA-ADPCM-style nibble stream using the standard step/index tables recovered in the binary
Supported output depths	8-bit and 16-bit PCM

File layout

Offset	Size	Type	Description
0x00	0x04	ASCII	FCMP magic
0x04	0x04	uint32le	Compressed payload size
0x08	0x04	uint32le	Sample rate in Hz
0x0c	0x02	uint16le	Output bits per sample (8 or 16)
0x0e	variable	bytes	ADPCM payload

Notes

• Sampled MENACE.CMP starts with FCMP, a payload size of 0x0db48b, sample rate 22050, and 16 bits per sample.
• The loader family is tolerant: some call paths accept either FCMP or raw WAVE data. The .CMP extension itself points to the compressed path, but the runtime checks the actual file signature before decoding.
• From an architectural perspective, this is the audio-side equivalent of Harvester’s XFILE abstraction: one wrapper format reused across music, speech, and effects.

FST (Cutscene / streamed animation)

.FST is Harvester’s custom streamed movie format. It combines a file header, a compact per-frame index table, block-coded video payloads, optional per-frame palettes, and per-frame audio chunks.

Summary

Property	Value
Format role	Cutscene / transition movie format
Confirmed magic	FST2 (0x32545346 on disk, little-endian)
Video model	8-bit indexed frames decoded in 4 x 4 blocks
Audio model	Per-frame audio chunks described by the frame index table
Confirmed consumers	run_fst_sequence_player, play_fst_sequence, startup intro path, scripted room transitions

File header

Offset	Size	Type	Description
0x00	0x04	ASCII	FST2 magic
0x04	0x04	uint32le	Frame width
0x08	0x04	uint32le	Frame height
0x0c	0x04	uint32le	max_frame_size
0x10	0x04	uint32le	frame_count
0x14	0x04	uint32le	frame_rate
0x18	0x04	uint32le	sample_rate
0x1c	0x04	uint32le	bits_per_sample
0x20	frame_count * 6	array	FstFrameIndexEntry[frame_count]

Frame index entry

Offset within entry	Size	Type	Description
0x00	0x04	uint32le	video_size
0x04	0x02	uint16le	audio_size

Video payload for one frame

Sequence element	Description
uint16 bit_count	Number of bits in the control bitstream
((bit_count >> 3) + 1) bytes	Packed control-bit stream
Optional 256 * 3 bytes	Present only when the first control bit is set; this is a VGA-style 6-bit palette block, not a .PAL resource block
Block payload stream	One record per changed 4 x 4 tile across the frame

Block coding

Control bits / payload	Meaning
Changed-bit 0	Leave the existing 4 x 4 block unchanged
Changed-bit 1, mode-bit 0, 16-byte payload	Literal 4 x 4 pixel block
Changed-bit 1, mode-bit 1, 4-byte payload	Two colors plus a 16-bit mask describing a 4 x 4 block

Notes

• Sampled VIRGLOGO.FST is 320 x 200, stores 131 frames, plays at 15 fps, and carries 22050 Hz / 16-bit audio.
• The native and ScummVM players both treat FST as a streaming format: read one frame, queue its audio, decode its video, and advance without loading the whole movie at once.
• HARVEST.SCR uses GOFLIC/GODEATHFLIC opcodes to trigger .FST files. That mismatch between opcode names and file extension is a strong architectural clue that FST replaced or wrapped an older movie concept without rewriting the script vocabulary.
• The censorship path also shows how self-contained the format is: FST can carry its own palette updates frame-by-frame, while the player temporarily swaps in an external CENSORED.PCX overlay when gore is disabled.

PCX (Standard indexed still image)

Harvester does use standard .PCX files in at least one confirmed place: the censorship overlay shown during certain FST sequences when gore is disabled.

Summary

Property	Value
Format role	Standard 8-bit indexed PCX still image
Confirmed consumer	Native load_pcx_bitmap; ScummVM FST censorship overlay loader
Encoding	PCX RLE
Palette	Trailing 256-color palette block when present

Confirmed header fields

Offset	Size	Type	Description
0x00	0x01	byte	Manufacturer (0x0a in sampled CENSORED.PCX)
0x01	0x01	byte	Version (0x05 in the sample)
0x02	0x01	byte	Encoding (0x01 = RLE)
0x03	0x01	byte	Bits per pixel per plane (0x08 in the sample)
0x04	0x02	uint16le	xMin
0x06	0x02	uint16le	yMin
0x08	0x02	uint16le	xMax
0x0a	0x02	uint16le	yMax
0x41	0x01	byte	Color planes (0x01 in the sample)
0x42	0x02	uint16le	Bytes per line (320 in the sample)
0x80	variable	bytes	RLE-compressed image data
EOF - 769	0x01	byte	Standard palette marker 0x0c in the sampled file
EOF - 768	0x300	bytes	256-color palette block when present

Notes

• Sampled CENSORED.PCX is a textbook single-plane 320 x 200 PCX, which is why the ScummVM port can use the generic PCX decoder for it.
• The native loader contains two Harvester-specific wrinkles: it trims the optional 0x0c palette marker by jumping straight to the last 0x300 bytes, and when the logical width from xMax is one pixel smaller than bytesPerLine, it trims the padded stride byte after decode.

FLC (Standard Autodesk FLIC animation)

Harvester does ship .FLC files, and the sampled files match the standard Autodesk FLIC/FLC header rather than a Harvester-specific wrapper. The current Harvester engine work has not yet recovered the exact native Harvester-side call path that consumes them, so this section stays limited to what is directly supported by sample bytes, binary strings, and the generic ScummVM FLIC decoder.

Summary

Property	Value
Format role	Standard 8-bit FLIC/FLC animation files bundled with Harvester
Evidence	Sample files such as GRAPHIC/ROOMANIM/HARVPNTR.FLC and GRAPHIC/FST/CHESMOV1.FLC; native strings Could not load flic. and flic.cpp; hardcoded .flc paths in the binary
Harvester-specific loader status	Not yet fully recovered in current Harvester analysis
Decoder in repo	Generic ScummVM video/flic_decoder.cpp

Confirmed standard header fields

Offset	Size	Type	Description
0x00	0x04	uint32le	File size
0x04	0x02	uint16le	Magic 0xaf12
0x06	0x02	uint16le	Frame count
0x08	0x02	uint16le	Width
0x0a	0x02	uint16le	Height
0x0c	0x02	uint16le	Color depth (8 in the sampled file)
0x0e	0x02	uint16le	Flags
0x10	0x04	uint32le	Frame delay in milliseconds
0x50	0x04	uint32le	Offset of frame 1
0x54	0x04	uint32le	Offset of frame 2
0x80	variable	bytes	First frame/chunk stream begins here in the generic decoder

Notes

• Sampled HARVPNTR.FLC starts with a valid FLC header: size 0x214a, magic 0xaf12, 10 frames, 26 x 26, and 8-bit color.
• The decoded HARVEST.SCR sample does not reference .FLC files directly; its GOFLIC opcodes currently point to .FST files instead. That suggests .FLC belongs to a parallel or older asset path rather than the main shipping story-transition pipeline. This last point is an inference from the sampled script and should stay provisional.
• Taken together, the resource set shows three animation strata: lightweight sprite ABMs, streamed FST movies, and a residual standard FLC layer. That is a strong narrative hook for explaining how mixed-tool resource pipelines often survive into shipped games.

TRY IT OUT

ffplay -loop -1 "GRAPHIC/ROOMANIM/HARVPNTR.FLC"
ffmpeg -i "GRAPHIC/ROOMANIM/HARVPNTR.FLC" out.gif
